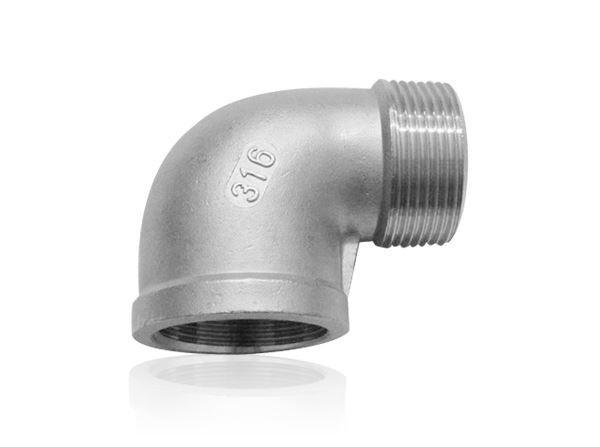

The Stainless Steel Pipe 90 Degree Street Elbows Facilitate the connection of pipe fittings.
Application: Water,oil,air,chemical engineering and some corrosive liquid.
|
Product Name |
Stainless Steel Pipe 90 Degree Street Elbows |
|
Material |
Stainless Steel S/s 304,316,304l,316l,430,409 Etc. Carbon Steel And Certain Alloy Steel. |
|
Size |
1/8''-4'' |
|
Dn6, Dn6, Dn8, Dn10, Dn15, Dn20, Dn25, Dn32, Dn40, Dn50, Dn65, Dn80, Dn100. |
|
|
Thread |
Npt, Din2999, Bsp, Bspt, Bspp, Pt,pf |
|
Pressure |
150 Lbs |
|
Surface Threatment |
Polished,sand Blast |
|
Standard |
ISO9001:2008, CE, PED 97/23/EC |
|
technics |
Investment casting / Seamless Pipe Machining |
|
technology |
Silica Colloidal Solution craft |
|
Dimension conform to |
ISO4144, SP114, EN-10241, JIS |
|
Sample Making |
Available, Free sample with freight collect |
|
Package |
Plastic bag,bubble bag, cartons, wooden pallet,wooden box |
|
Custom |
Available, customize as your design,photo,drawing |
|
Payment terms |
30% prepayment T/T,balance against B/L; L/C. |
|
After-service |
Replacement for free if there is any quality problem |
|
Lead time |
Usually no more than 30 days, according to your quantity |
The technology is silica-sol precision Lost Waxing technology , after we get the casting parts, then machined by CNC lathe/taper machines.
Different design for different requirements,Pressur.
Product Requirements Are Strict：
Internal:test raw material of stainless steel and wax;
repair WAX ,if the wax mold is unqualified, the cluster process will not be assembled.\4
Before pouring, spectrum analysis will be carried out
After passivation, the first casting inspection will be carried out. If it is unqualified, it will be returned for treatment.
We have three inspection teams when processing CNC lathes, namely, workers' self inspection, patrol inspection and final inspection before leaving the factory. Even, some products will be leak tested.
Due to so carefully to quality,we win more and more returned customers.
External:Passed ISO,BV, PED,AD2000,UKCA,accept any 3rd party inspection before shipment.
FAQ:
Q: What is your terms of payment ?
A: 30% T/T in advance ,balance against B/L or L/C at sight.
Q:Are units that failed inspection clearly marked and separated to prevent accidental dispatch?
A:Yes, the units are separated and marked clearly
